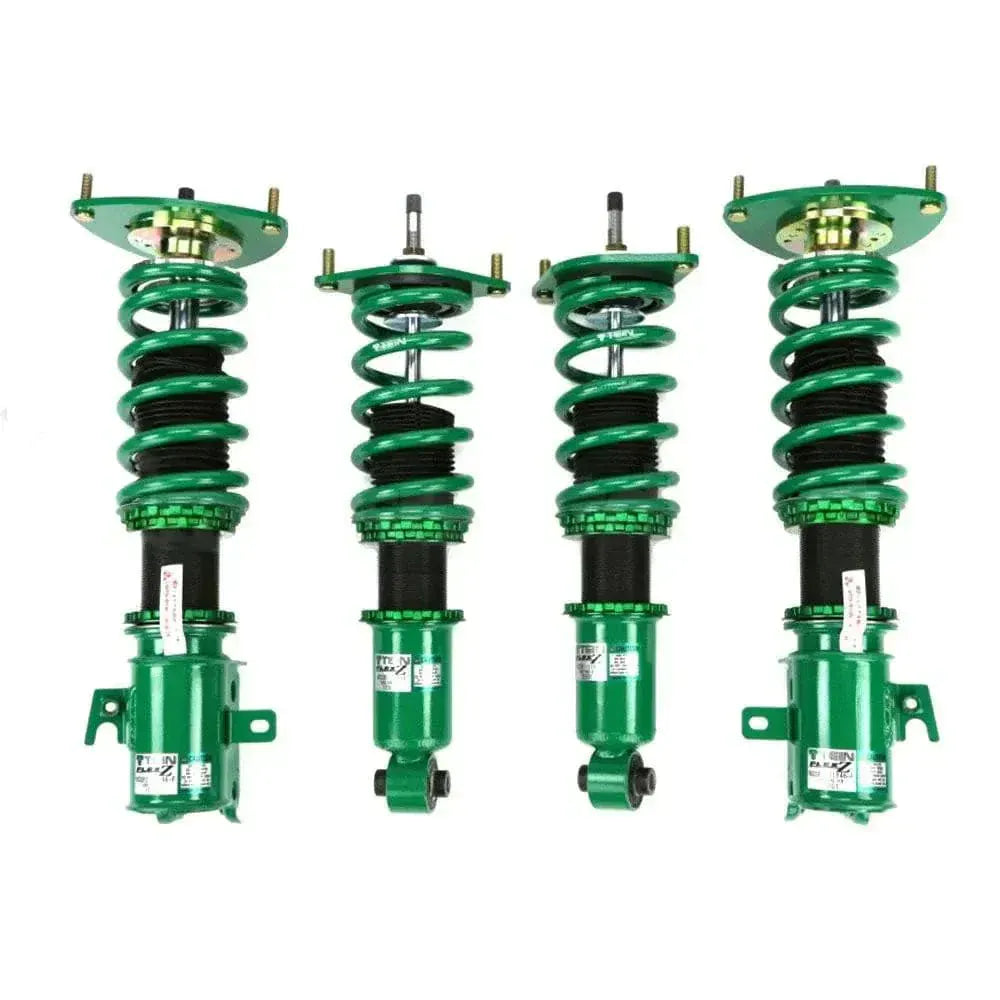

TEIN Flex Z Coilovers (VSGP2-C1AA3-C) for Tesla Model 3 and Model Y RWD

Overview

The TEIN Flex Z VSGP2-C1AA3-C is a complete coilover kit for the rear wheel drive Tesla Model 3 (Standard Range and Standard Range Plus) and the Model Y RWD.

Flex Z uses a twin-tube damper for a comfortable street ride, a full-length ride height adjustment system that changes ride height without changing damper stroke or spring preload, and 16-level damping adjustment. It is compatible with TEIN's EDFC in-car damping controllers, which are sold separately.

TEIN recommends its EDFC controller for this kit because the rear damping adjusters are hard to reach by hand on these cars. For the Model Y, TEIN specifies different damper length settings, which are set during install.

Fitment

TEIN's application chart lists this kit for the 2017 to 2023 Model 3 Standard Range and Standard Range Plus RWD, the 2024 and newer Model 3 RWD, and the 2021 to 2025 Model Y RWD. It does not list the 2020 Model Y or the Model 3 Long Range RWD, and it does not name Juniper.

What's Included

• TEIN Flex Z coilover kit, part number VSGP2-C1AA3-C
• 4 shock absorbers and 4 springs
• Upper mounts (included for this kit per TEIN's application chart)

Specs

• Brand: TEIN
• Series: Flex Z
• Part number: VSGP2-C1AA3-C
• Drivetrain: RWD
• Damper design: Twin-tube
• Damping adjustment: 16 levels
• Ride height adjustment: Full-length
• Spring rate, front: 504 lbs/in (9.0 kgf/mm)
• Spring rate, rear: 560 lbs/in (10.0 kgf/mm)
• Recommended ride height change, Model 3: 1.4 to 2.2 in lower front, 1.0 to 1.8 in lower rear (per TEIN)
• Recommended ride height change, Model Y: 1.0 to 1.8 in lower front, 1.0 to 1.8 in lower rear (per TEIN)
• EDFC: Compatible, sold separately. Recommended by TEIN for the rear

Part Numbers

• Manufacturer part number: VSGP2-C1AA3-C
• AWD version: VSAQS-C1AA3-C

Warranty

TEIN USA offers a one year limited warranty on Flex Z. TEIN requires the original purchase receipt from a TEIN authorized dealer, and coverage applies to products bought and used in North America and South America.

Install with RideRite

RideRite is a mobile suspension install service in the San Francisco Bay Area. We come to you at home or at work, so there is no need to drop your car off anywhere.

• We install the coilovers at your location.
• A wheel alignment is required after install. RideRite does not perform alignments, so plan to book one with an alignment provider soon after the install. Driving for long on an unaligned car can wear tires quickly.
• After install, ride height is set to your target within TEIN's recommended range.

Book an install or request a quote at riderite.us
