FR SPORT
Tomei Forged Piston Kit 2JZ-GTE
Sale price
$1,620.00
Regular price
$1,800.00
Frequently bought together
Free shipping on orders over $150
Hassle-free returns & exchanges
Secure checkout — Shop Pay, Apple Pay & all major cards
Product details

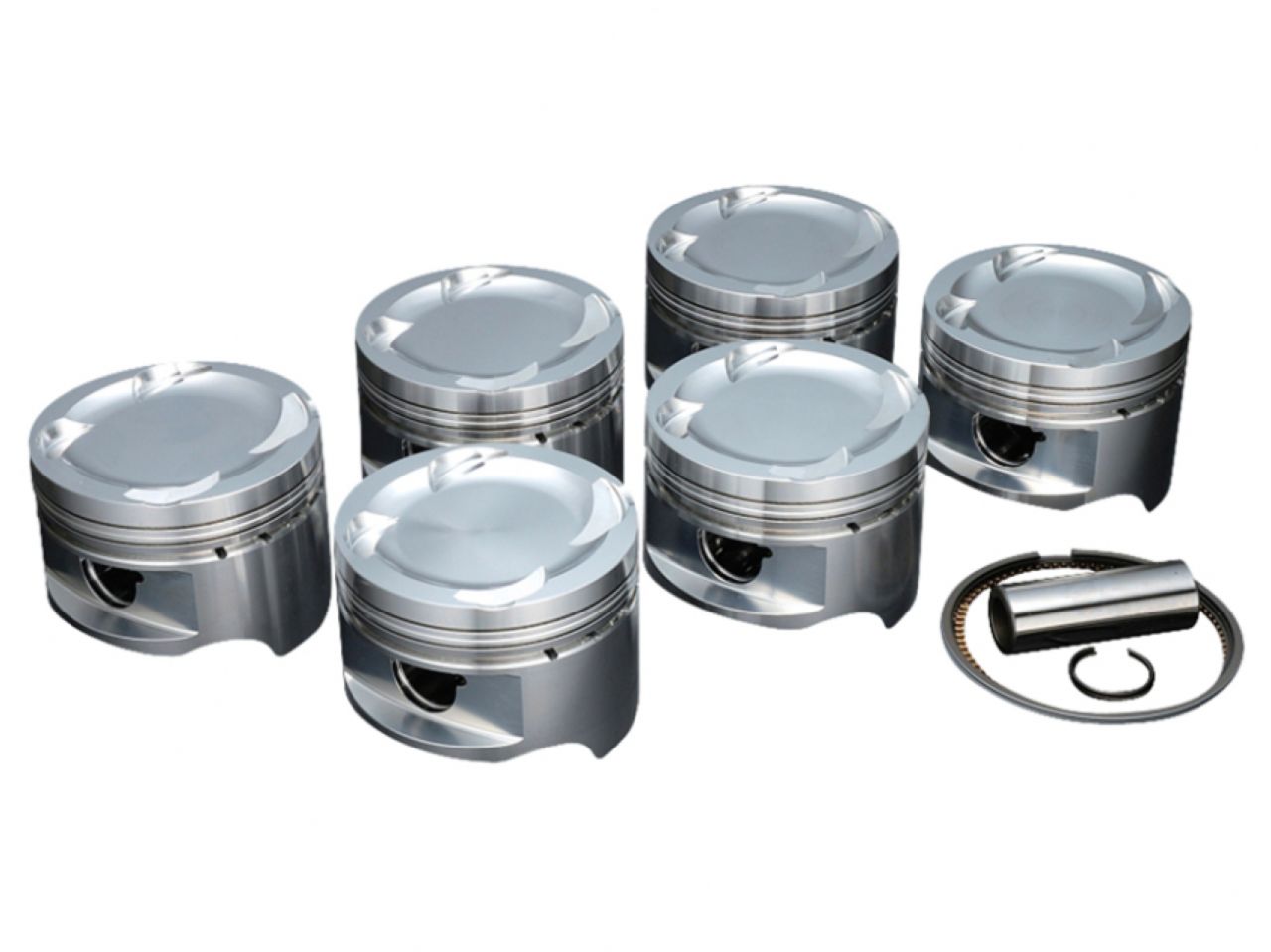

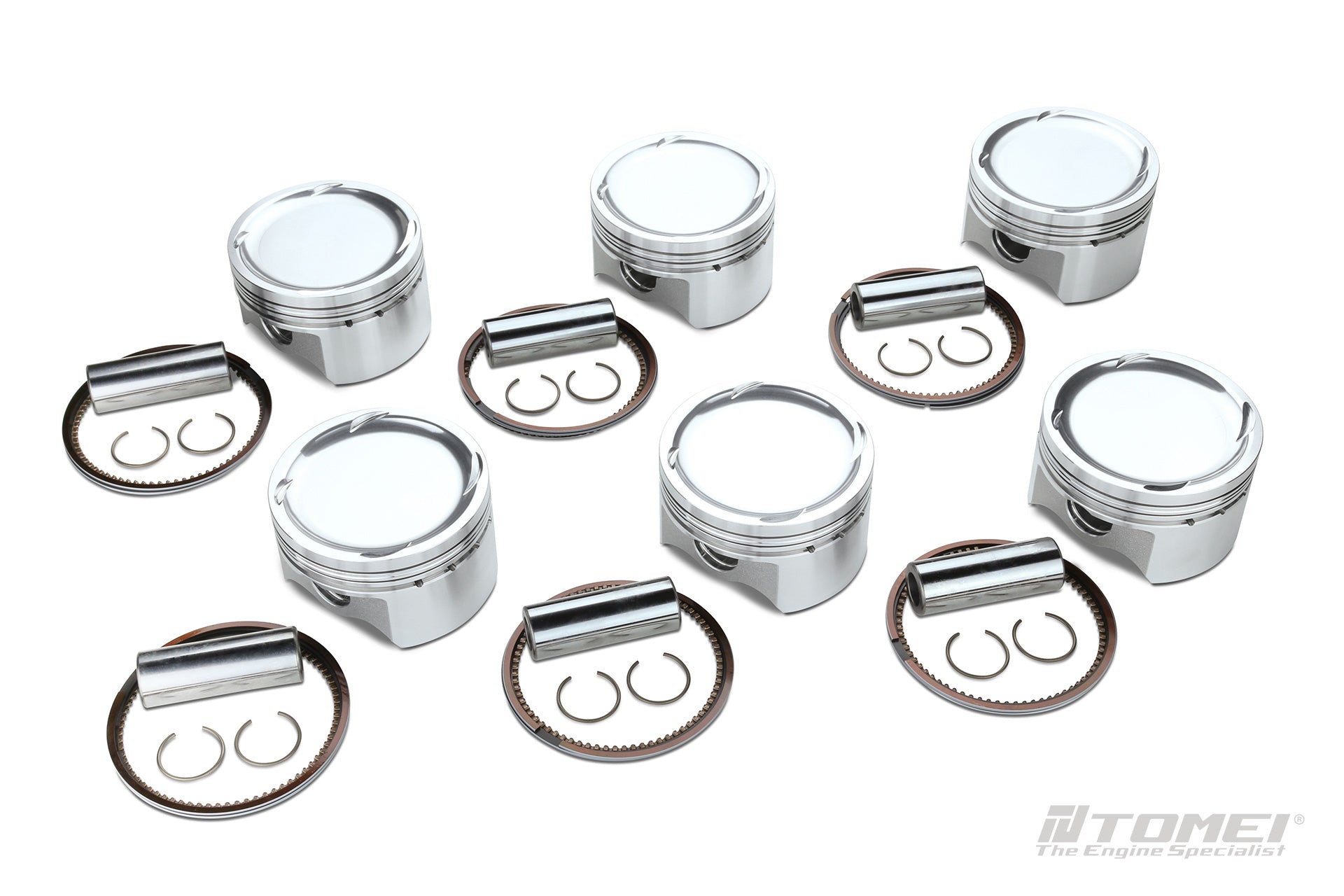

Forged Piston Kit 2JZ-GTE
Category: Cylinder Block Piston
| Category | Parts Number |
| 87.00mm CH30.00 (3.4) | TA202A-TY03A |
| 87.00mm CH30.00 (3.4) CP | TA202A-TY03AP |
| 87.00mm CH29.50 (3.6) | TA202A-TY03B |
| 87.00mm CH29.50 (3.6) CP | TA202A-TY03BP |
| Part Number | TA202A-TY03A | TA202A-TY03B | TA202A-TY03AP | TA202A-TY03BP |
| BORE (mm) | 87.00 (OEM +1.0) |
87.00 (OEM +1.0) |
87.00 (OEM +1.0) |
87.00 (OEM +1.0) |
| PIN DIA. (mm) | 22 | 22 | 22 | 22 |
| PIN LENGTH (mm) | 60 | 60 | 64 | 64 |
| CLIP INNNER DIA. | 22 | 22 | 22 | 22 |
| VALVE RECESS | WITH | WITH | WITH | WITH |
| COMP.HEIGHT (mm) | 30.00 (OEM -4.0) | 29.50 (OEM -4.5) | 30.00 (OEM -4.0) | 29.50 (OEM -4.5) |
| PISTON DOME VOL. (cc) | -17.5 | -22.6 | -17.7 | -22.6 |
| PISTON WEIGHT (g) | 299.6 | 278.5 | 326 | 319 |
| PIN WEIGHT (g) | 121.5 | 121.5 | 133 | 133 |
| TOTAL WEIGHT (g) | 421.1 | 400 | 459 | 452 |
| TOP RING (mm) | 1.20 x 3.05 | 1.20 x 3.05 | 1.20 x 2.9 | 1.20 x 2.9 |
| SECOND RING (mm) | 1.20 x 3.90 | 1.20 x 3.90 | 1.20 x 3.0 | 1.20 x 3.0 |
| OIL RING (mm) | 2.50 x 2.95 | 2.50 x 2.95 | 2.0 x 2.7 | 2.0 x 2.7 |
| MATERIAL | A4032 | A4032 | A2618 | A2618 |
SKU: 1Q11X
