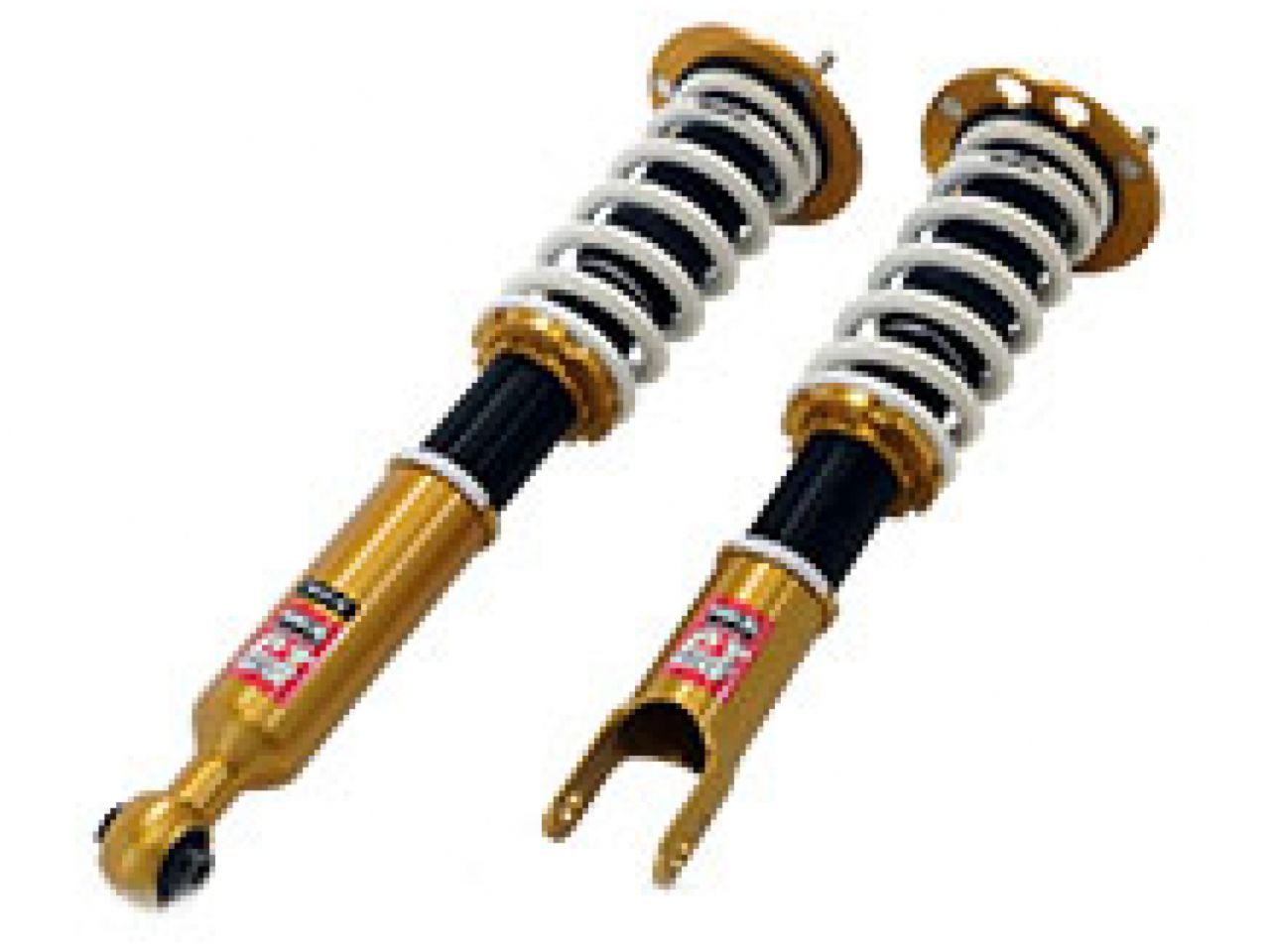

HKS Hipermax Iv Gt Fd3s Full Kit
$1,550.00
Frequently bought together
Free shipping on orders over $150
Hassle-free returns & exchanges
Secure checkout — Shop Pay, Apple Pay & all major cards
Product details
This is set for city street drive. HKS has redesigned the M shaft and inside of the damper that has improved driving experience and handling by pulling up damping fast from the start. The new design of rear upper plate give more adherence to the body.
The recommended setting for dial is 15 step for both front and back. If you want more comrfortable setting, set it to 25 to 30 step. MAX IV can handle from city street to winding roads.
Application:
| Engine | 13B-REW |
| Model Year | 91/12 - 02/08 |
| Remarks | - |
Specification:
| FRONT | REAR | |
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | ? | ? |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Normal | Normal |
| Damper/Spring layout | Coilover | Coilover |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) |
- | - |
Ride Height:
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
| FRONT | Ride height *1 | 645 | ? | 665 ? 598 | 665 ? 620 |
| Against stock | -20 | ? | 0 ? -67 | 0 ? -45 | |
| REAR | Ride height *1 | 653 | ? | 677 ??591 | 677 ??619 |
| Against stock | -24 | ? | 0 ? -86 | 0 ? -58 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information:
Spring of Full Kit
| F | R | |
| Spring rate N/mm(kgf/mm) | 78 ( 8 ) | 78 ( 8 ) |
| Free height (mm) | 200 | 200 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±20 ( 2 ) |
Specification of damper:
| F | R | |
| Damping force (Rebound/Damping)N* | 1353 / 363 | 1079 / 314 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 45 / 55 | 44 / 56 |
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
| F | R | |||||||
| Default | Test | Drivable limit High * |
Drivable limit Low * |
Default | Test | Drivable limit High * |
Drivable limit Low * |
|
| Length of case (mm) |
377 | ? | 390 | 370 | 301 | ? | 318 | 283 |
| Spring Set length(mm) |
190 | ? | ? | 200 | 194 | ? | ? | 200 |
| Length to ride hight adjuster (mm) |
74 | ? | 87 | 57 | 74 | ? | 91 | 50 |
| Lever ratio | 1.49 | 1.40 | ||||||
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
SKU: 0JN10
